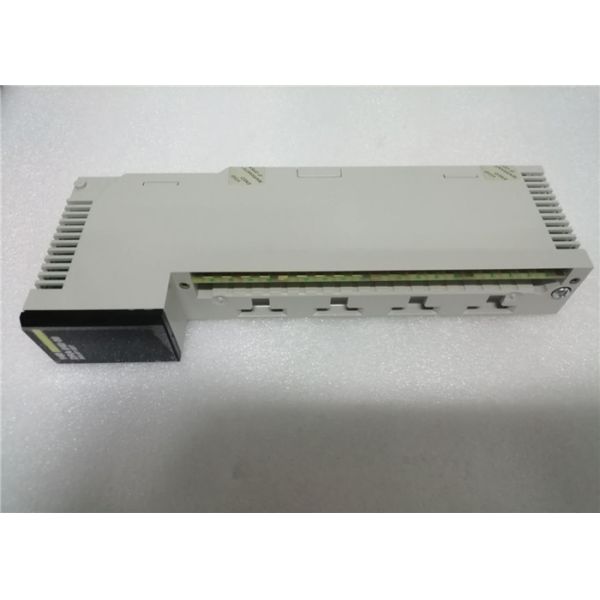

Schneider Electric 140NOL91100 Quantum Ethernet RS232 New Original

Shenzhen Wisdomlong Technology CO.,LTD
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment

Schneider Electric 140NOL91100 Quantum Ethernet RS232 New Original

  • 1
  • 2

Brand Name : Schneider

Model Number : 140NOL91100

Certification : CE

Place of Origin : France

MOQ : 1PC

Price : 1-1000USD/pc

Payment Terms : T/T, Western Union,Paypal

Supply Ability : 10 pcs/month

Delivery Time : 2-3 working days

Packaging Details : new original package

range of product : Modicon Quantum automation platform

Country of origin : France

Brand : Schneider

PN : 140NOL91100

Condition : brand new

Type : QUANTUM PROCESSOR

MOQ : 1 PCS

Warranty : 12 months

Contact Now

Schneider Electric 140NOL91100 Quantum Ethernet RS232 New Original

Main
range of product
Modicon Quantum automation platform
product or component type
Ethernet network TCP/IP module
concept
Transparent Ready
web server
Class B30
web services
Diagnostics via predefined web pages
Rack viewer
Data Editor (via PC terminal)
communication service
SNMP network management
Bandwidth management
Global Data
I/O scanning
Modbus TCP messaging
FDR server
communication port protocol
Ethernet Modbus TCP/IP
physical interface
MT/RJ - 100BASE-FX fiber optic
RJ45 - 10BASE-T/100BASE-TX twisted pair
transmission rate
10/100 Mbit/s
Complementary
redundancy
Yes hot standby redundant architecture
supply
Via the power supply of the rack
marking
CE
local signalling
1 LED10 Mbps or 100 Mbps data rate (10 MB/100 MB):
1 LEDcollision detection (Coll):
1 LEDdownload mode (Kernel):
1 LEDEthernet module fault (Fault):
1 LEDEthernet network status (RUN):
1 LEDfull-duplex mode (Fduplex):
1 LEDmodule ready (Ready):
1 LEDnetwork active (Link):
1 LEDrack operational (Active):
1 LEDtransmission/reception activity (TxAct/RxAct):
current consumption
750 mA at 5 V DC
module format
Standard
net weight
0.345 kg
Environment
IP degree of protection
IP20
product certifications
CUL
UL 508
standards
CSA C22.2 No 142
FM Class 1 Division 2
resistance to electrostatic discharge
4 kV contact conforming to IEC 801-2
8 kV on air conforming to IEC 801-2
resistance to electromagnetic fields
10 V/m 80...1000 MHz conforming to IEC 801-3
ambient air temperature for operation
0…60 °C
ambient air temperature for storage
-40…85 °C
relative humidity
95 % without condensation
operating altitude
<= 4500 m

Similar Model Products

Analog I/O modules Discrete I/O modules
140ACI03000 140DDI15310 140DAI55300 140DAO84210
140ACI04000 140DDI35300 140DAI74000 140DAO84220
140ACO02000 140DDI35310 140DAI75300 140DAO85300
140ACO13000 140DDI36400 140DSI35300 140DRA84000
140AII33000 140DDI67300 140DDO15310 140DRC83000
140AII33010 140DDI84100 140DDO35300 140DVO85300
140AIO33000 140DDI85300 140DDO35301 140DDM39000
140AMM09000 140DAI34000 140DDO35310 140DDM69000
140ARI03010 140DAI35300 140DDO36400 140DAM59000
140ATI03000 140DAI45300 140DDO84300 140DII33000
140AVI03000 140DAI54000 140DDO88500 140DIO33000
140AVO02000 140DAI54300 140DAO84000 140DAO84010

(1) CPUs updated with the Unity Pro firmware.
(2) The addition of a complete Ethernet RIO drop function is available for these CPUs with
Unity Pro u V7.0.

ConneXium™ managed switches (continued) Predefined configuration files (continued) Example topology with predefined configuration files C5, C1 and C3 (1) A common use of this preconfiguration is for interfacing a copper link with a fiber optic link on the primary ring or interfacing a fiber optic link with a copper link. This type of architecture makes it possible to have Ethernet DIO or Ethernet RIO drops some distance away from the PLC. The switch preconfiguration also enables Ethernet RIO and/or several Ethernet DIO device clouds to be connected to a secondary ring.

Schneider Electric 140NOL91100 Quantum Ethernet RS232 New Original

1 Primary ring, copper/fiber optic medium

3 Ethernet head adaptor 140NOA61100 installed in the Quantum™ rack.

4 ConneXium switch TCSESM083F23F1 with predefined configuration file C2 (2)

5 ConneXium switch TCSESM063F2CU1/CS1 with predefined configuration file C6 (2)

6 ConneXium switch TCSESM063F2CU1/CS1 with predefined configuration file C4 (2)

7 Modicon™ STB Ethernet DIO (3) (4)

8 Connection to Ethernet DIO device cloud, copper medium only

9 Ethernet DIO device cloud (3)

10 Ethernet communication module 140CPU31110

11 Ethernet Interlink cable TCSECN3M3M1S4/1S4U (1 m)
